Belt Dryer

Hemp Biomass Drying System

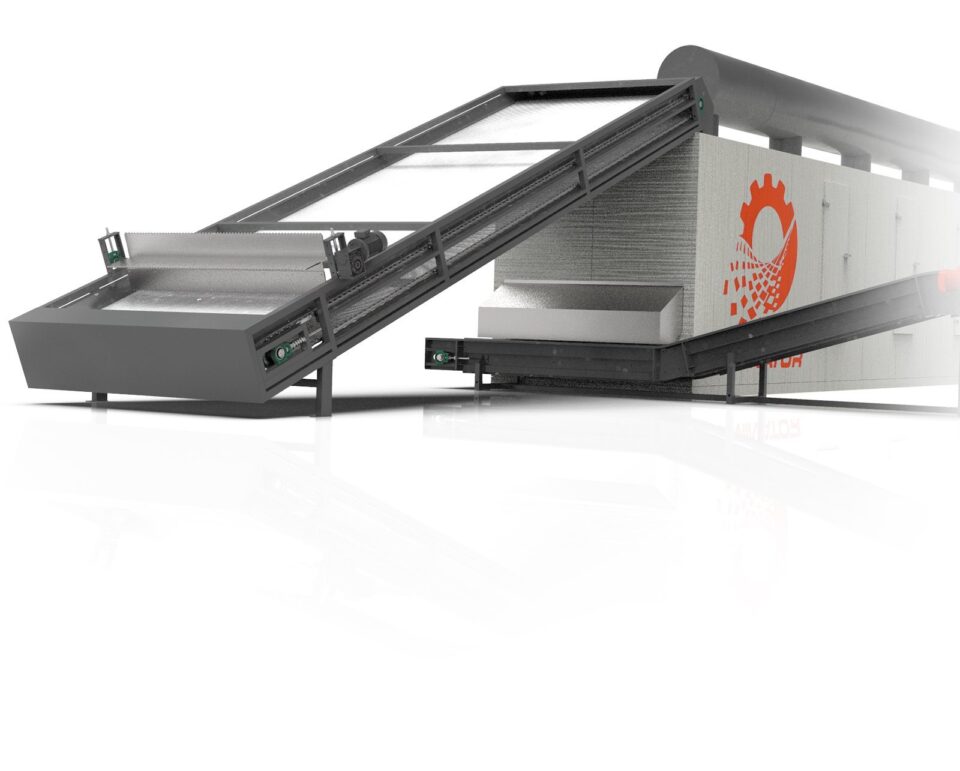

Our Belt hemp dryer is designed to utilize the combination of heat and air to rapidly dry hemp leaves and flowers. Material enters via the conveyor into a multi-layer belt system whereby it is dried by airflow and heat.

PROFESSIONAL GRADE

RAPID DRYING

Designed to dry up to 700 lbs. per hour. The Triminator Belt Dryer is a fast, industrial-scale solution to massive hemp harvest drying.

UL/NRTL COMPLIANT

Triminator dryers have been reviewed by Nationally Recognized Testing Laboratories for compliance with UL standards. All components are UL listed and on-site certification is available.

FOOD GRADE - GMP READY

All material touchpoints are made from 304 stainless to meet food-grade standards and GMP requirements.

belt_white-bg

CLOSED LOOP SYSTEM

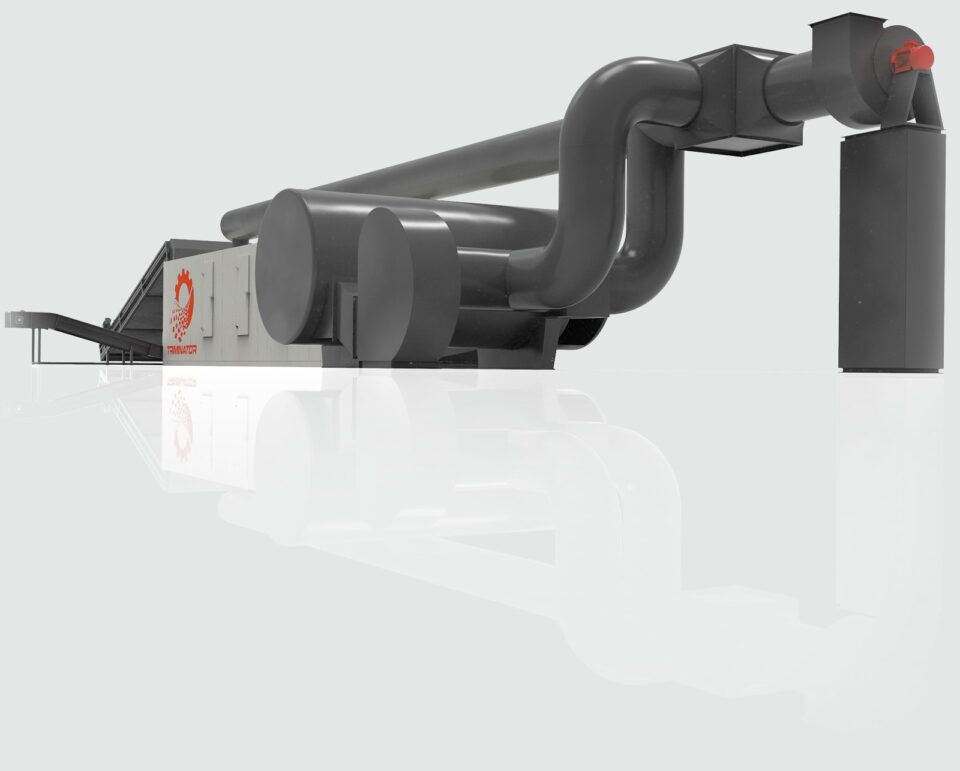

CBD hemp dryer is designed as a closed loop system whereby a filtration system captures any material which is blown out of the drying chamber, resulting in the capture of valuable material for downstream use.

FAST DRYING TIME

Approximate drying time 4-5 hrs from start to finish. Production is continuous so drying time starts when material enters the belt wet and exits dry.

MATERIAL REQUIREMENTS

  • Hemp leaves, shredded flower, biomass
  • 5/16″-1″ material diameter
  • Moisture Input 80%, Output 10-13%
  • Heating temperature 104-194F, 40-90C
belt-exhaust_gray-bg

MAXIMUM ROI

LOW OPERATING COST

The Belt hemp dryer utilizes a proprietary heat recapture system which recycles up to 80% of the system heat for maximum efficiency and operating cost savings.

TURN-KEY

Triminator provides engineering, and project management support to make installation and training fast and easy.

FUEL SOURCE OPTIONS

Compatible with the fuel source of your choice:

  • Natural Gas
  • Propane
Dana Mosman - Triminator CEO

We are proud to be the exclusive partner of one of the worlds leading industrial drying companies. With experience across the globe with some of the world's largest companies, we are excited to bring this customized solution to the hemp industry.

– Dana Mosman | Triminator CEO

belt-dryer_side_gray-bg

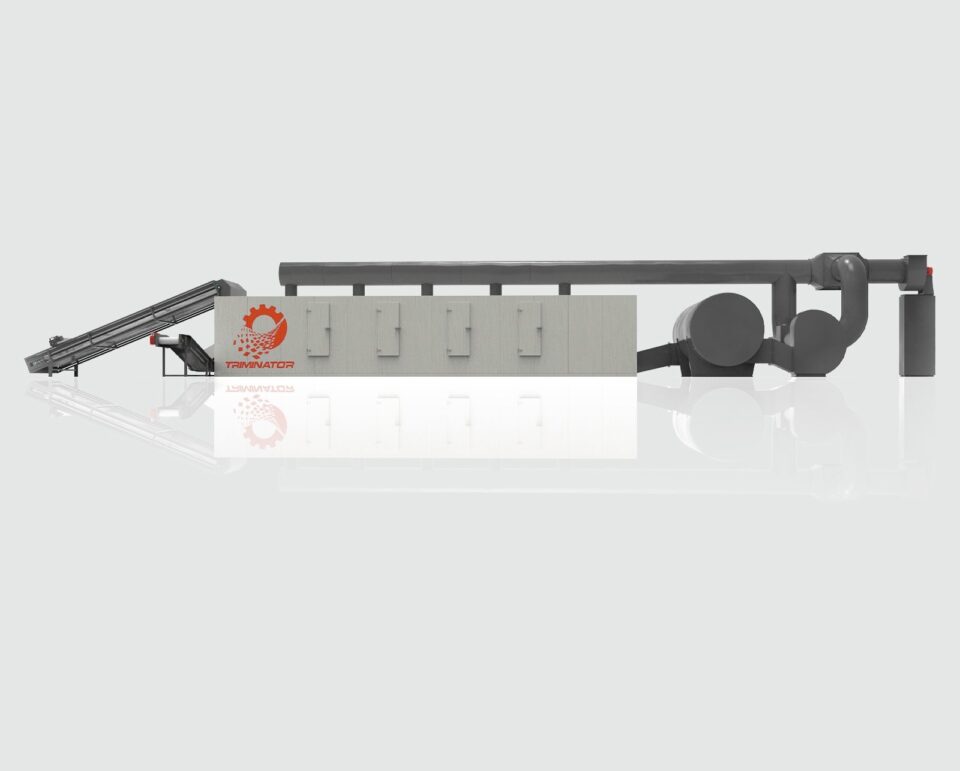

Specifications

HEIGHT
9.8 FT / 2.98 M

WIDTH
18 FT / 5.48 M

LENGTH
85.3 FT / 26 M

OPERATING TEMPERATURE
110-120 F / 43-90C

MAX TEMPERATURE
194 F / 88 C

MATERIAL SIZE
5/16" - 1"

THROUGHPUT/HOUR
up to 700 LBS / 317 KG
