Box Dryer

Cannabis flower DRYING SYSTEM

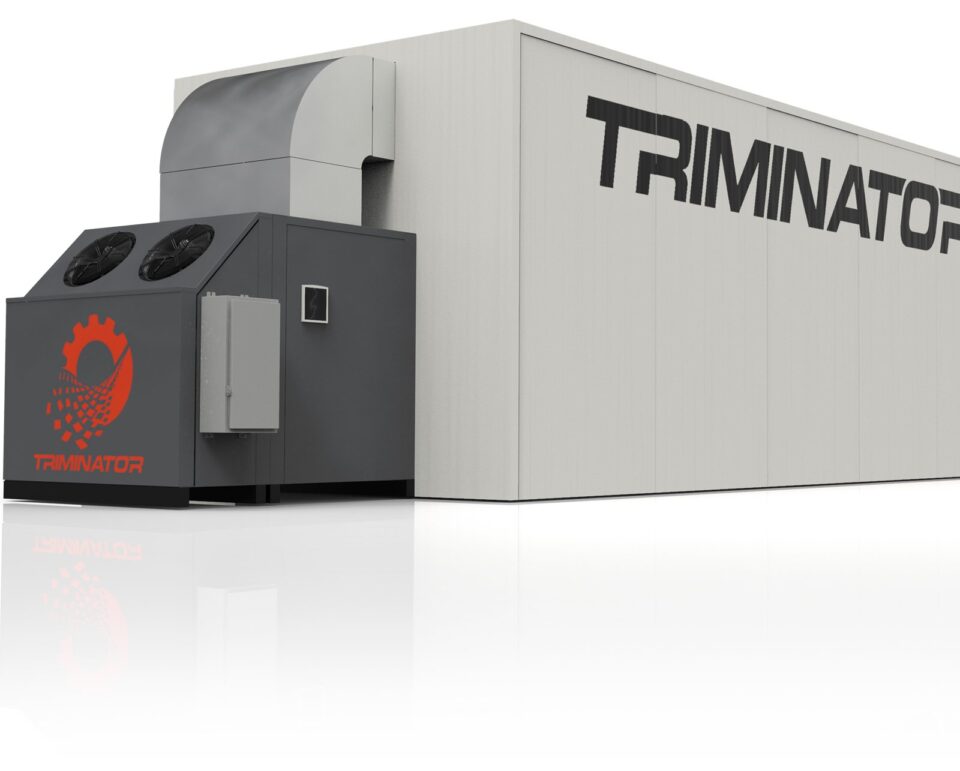

The Triminator Box Dryer provides a fast, efficient, and fully automated drying solution for cannabis flowers.

Innovative Drying

REPEATABLE PRODUCTION

Our hemp drying units are innovative drying chambers designed for low operating costs, high terpene retention and maximum efficiency. They are based on the reverse Carnot principle and a programmable control system to create the most efficient drying curves and consistent and repeatable end product.

TERPENE RETENTION

Based on the relative humidity in the drying chamber the control system regulates a combination of supplementary air, dehumidification and the heat pump to complete the most efficient drying curve and maximize terpene retention.

SIMPLE CONTROL

A proprietary system of temp, humidity and equipment controls work seamlessly to adjust as needed to intelligently control the drying process from start to finish.

boxdryer-white-bg

INTELLIGENT AIRFLOW

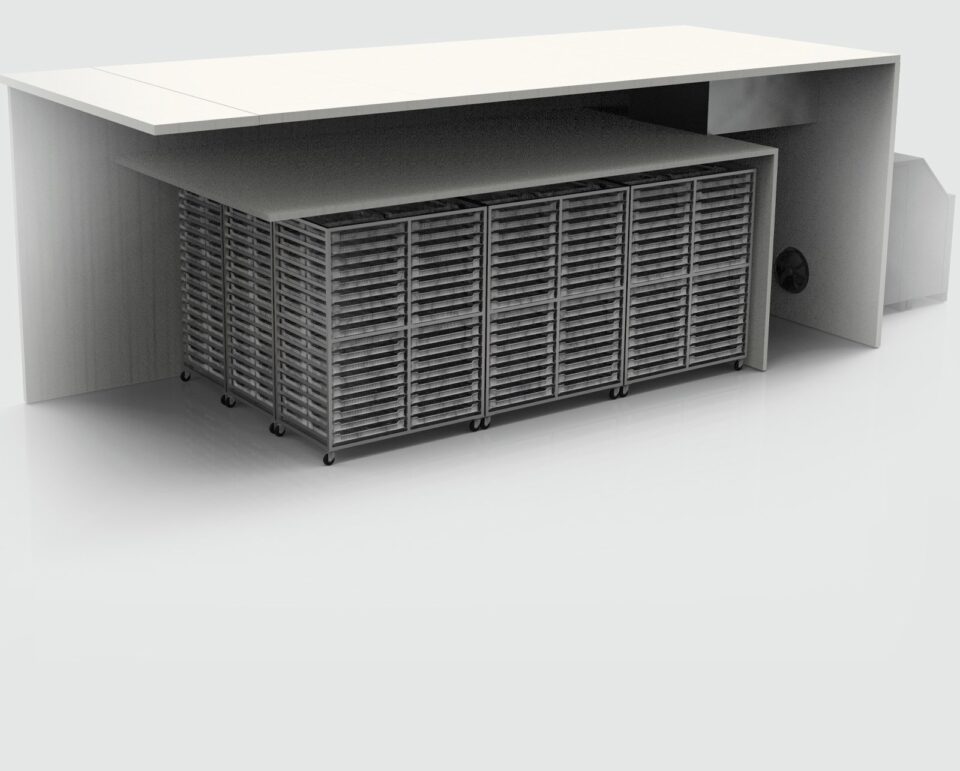

The airflow system is comprised of multiple sets of axial flow fans, air ducts, cold air inlets and a dehumidification system.

Customized Drying Control

Create custom drying curves and a menu of drying options ready for rapid drying, slow drying, or highly controlled curing all at the touch of a button.

Based on the relative humidity in the drying chamber the computer control system regulates a combination of supplementary air, dehumidification and the heat pump to complete the most efficient drying curve.

Batch Production

  • Variable drying times based on the desired process.
  • Highly Repeatable
  • Material Moisture Content
    • Moisture Input 60-80%
    • Output 10-13% (customizable)
box-inside_gray-bg

FACILITY READY

UL/NRTL COMPLIANT

Triminator dryers have been reviewed by Nationally Recognized Testing Laboratories for compliance with UL standards. All components are UL listed and on-site certification is available.

FOOD GRADE - GMP READY

All material touch points are made from 304 stainless to meet food grade standards and requirements.

TURN KEY

Our engineers train your team on all aspects of operation and maintenance to insure successful operations from day one.

We are so excited to finally have control and automation in our drying process. We are looking forward to professionalizing the way we dry and the way we control our processes from start to finish

– Dylan Thomas | Green Acres Farm

box-doors_gray-bg

Specifications

Height
9.75 FT / 2.90 M

Width
10 FT / 3.04 M

Length
33 FT / 10.05 M

Power
39 KW
